Why Choose Us

Modern Machinery, Superior Molds

“Modern Machinery, Superior Molds”

  • Machinery and equipment play a vital role in mold manufacturing.
  • The company continuously invests in modern machinery and equipment.
  • These come from renowned global brands.
  • Such investment ensures consistent product quality.
  • It also helps meet the increasingly high demands of customers

170+

PRODUCTION MACHINES

14

Years of EXPERIENCE

900+

customers SERVED

97%

SATISFACTION rate
Machinery & Equipment Overview
Machine Types Manufacturer Model Qty Total
Swiss-type CNC Lathes CITIZEN A20 1 11
CITIZEN A32 7
CITIZEN L32 3
CNC Lathes MAZAK QTE-200MY SG 1 20
OKUMA LB2000 EX 3
OKUMA LU3000 EX 3
TSUGAMI M06J 4
TSUGAMI M06J-II 6
TSUGAMI M08J-II 3
NC Lathes TAKISAWA TAC-510 1 3
DAINICHI DL530x100 2
Conventional Lathes TAKISAWA TSL-800 1 12
WASINO LE-19K 5
WASINO LEO-80A 1
WASINO LPT-35C 5
NC Gun Drill Machine MIROKU MLG-800S 8 13
MIROKU MKG-600-1NC / INC 3
MIROKU MKG-800S INC 1
MIROKU MIG-400-INC 1
CNC Vertical 3-Axis Machines OKK VB53 12 65
OKK VB53α 8
OKK VC51 1
OKK VC8-JR5 1
OKK VM43R 3
OKK VM53R 4
OKK VM76R 4
OKK VM4III 2
OKK VM7III 2
KITAMURA 1XiF 1
DMG MORI CMX 800V 5
DMG MORI CMX 1100V 4
MAZAK VCN-430A 2
MAZAK VCN-430A-L 4
MAZAK VCN-460 6
MAZAK VCN-530C L 1
MAZAK VC-Ez 410 IP 1
MAZAK VC-Ez 510 IP 1
OKUMA GENOS M460-VE-e 1
OKUMA GENOS M560-V-e 1
MORISEIKI SV-503B/50 1
CNC Vertical 4-Axis Machines OKK HM500 1 15

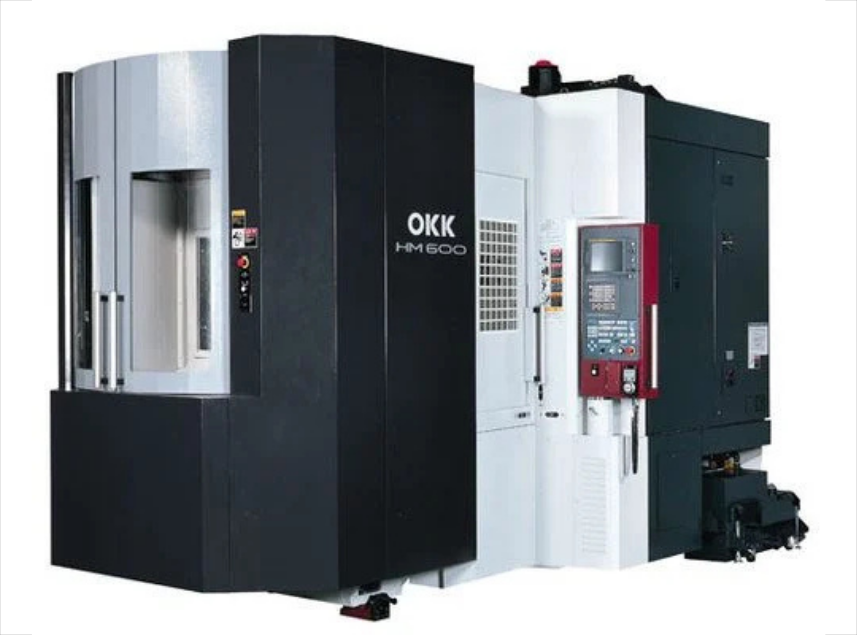

OKK HM600 1
OKK HMC400 4
OKK MH6300S 1

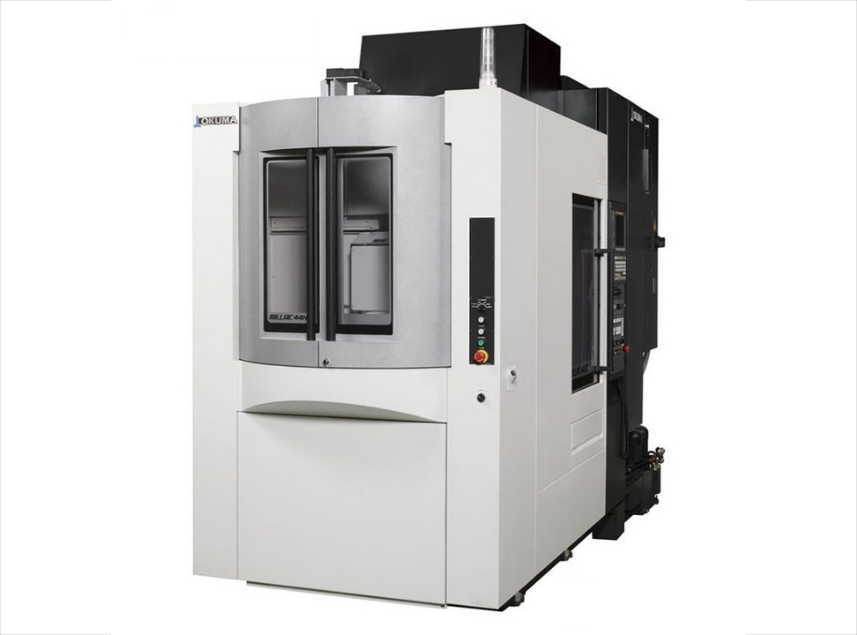

OKUMA MILLAC 44H II 7
YAMASAKI YZB-85NCR 1
Sinker EDM Machines MITSUBISHI EA28VM ADVANCE 1 3
MITSUBISHI SG-12M 1
MITSUBISHI SG-28M 1
Wire EDM Machines MITSUBISHI MV1200S 3 7
MITSUBISHI MV2400S D-CUBES 3
RUIJUN FR-400X 1
Grinding Machines NICCO F-64H 1 3
OKAMOTO PSG-157 1
WASINO SG-105A 1
Spotting Machines SANKI SEIKO SDP-1612-100T 1 1
Conventional Machines MAKINO KSA 1 2
MAKINO KSJP-55 1
Optical 2D Scanner KEYENCE IM-6120 1 1
Optical 3D Scanner GOM ATOS Q 1 1
3D Coordinate Measuring Machines TOKYO SEIMITSU XYZAX SVA800A 1 6
TOKYO SEIMITSU XYZAX AXCEL PH 9/10/6 1
TOKYO SEIMITSU XYZAX AXCEL PH 9/6/6 3
TOKYO SEIMITSU XYZAX AXCEL PH 9/6/6 1
High-Precision Digital Height Gauge SYLVAC Z5-700 3 6
MITUTOYO QMH-600B 1
MITUTOYO QMH-24″B 1
MITUTOYO QMH-24″BX 1
Hardness Tester MITUTOYO HR-320MS 1 1
Contour Measurement MITUTOYO CONTOURECORD 1600G 1 1
Surface Roughness Tester MITUTOYO SJ-310 series 178 1 1

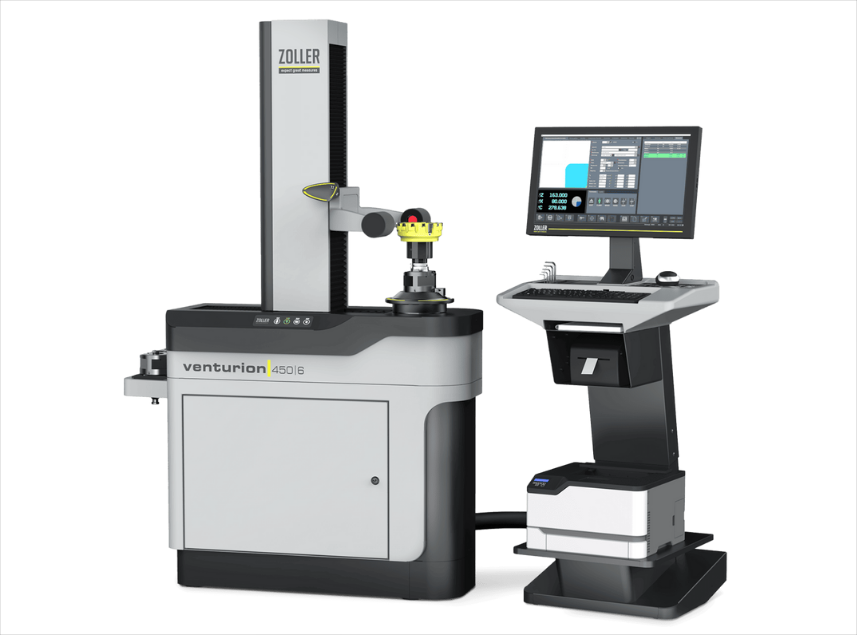

Tool Presetting and Measuring Machine ZOLLER VENTURION 450X 1 2
KYORITSU ISIII-6040 1
Air Compressor KOBELCO AG15A 3 6
KOBELCO AG37A 1
REINER RVK-22A 1
REINER RVH-37A 1
Tổng Năng lực sản xuất 180
Equipment for Manufacturing, Machining, and Production
Swiss-type CNC Lathes

⭐⭐⭐⭐⭐

CITIZEN

Cincom A20

Machining diameter ~ Ø20 mm
Machining length

(with/w.o rechucking)

 ~ 55 to 200 mm
Main Spindle

Sub Spindle

 ~ 10000 min-1

8000 min-1
Rotate tool speed ~ 4500 min-1
Turret 21
Controller Meldas/Fanuc

Production capacity:

01 machine

⭐⭐⭐⭐⭐

CITIZEN

Cincom A32

Machining diameter ~ Ø32 mm
Machining length

(with/w.o rechucking)

 ~ 80 to 320 mm
Main Spindle

Sub Spindle

 ~ 8000 min-1
Rotate tool speed ~ 4500 min-1
Turret 27
Controller Meldas/Fanuc

Production capacity:

07 machines

⭐⭐⭐⭐⭐

CITIZEN

Cincom L32

Machining diameter ~ Ø32 mm
Machining length

(with/w.o rechucking)

 ~ 80 to 320 mm
Main Spindle

Sub Spindle

 ~ 8000 min-1
Rotate tool speed ~ 6000 min-1
Turret 48
Controller Meldas/Fanuc

Production capacity:

03 machines
CNC Lathes

⭐⭐⭐⭐⭐

MAZAK

QTE-200MY SG

Chuck size 8″
Machining diameter ~ Ø340 mm
Machining length ~ 535 mm
Spindle speed ~ 5000 min-1
Turret V12
Saddle 1
Controller MAZATROL

Production capacity :

01 machine

⭐⭐⭐⭐⭐

OKUMA

LU3000 EX

Chuck size 8″
Machining diameter ~ Ø410 mm
Machining length ~ 350mm
Spindle speed ~ 5000 min-1
Turret V12 & V8
Saddle 2
Controller OSP-P300LA

Production capacity :

03 machines

⭐⭐⭐⭐⭐

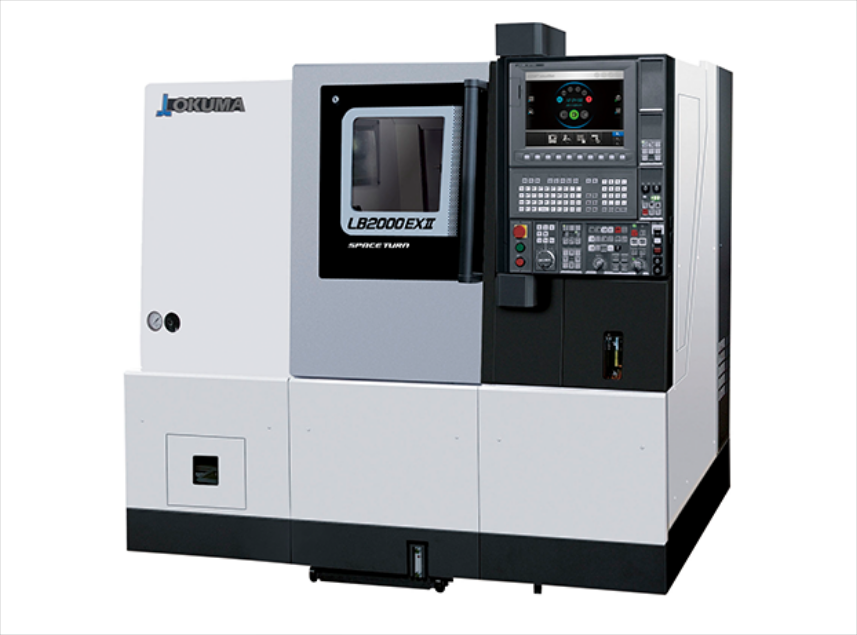

OKUMA

LB2000 EX II

Chuck size 6″
Machining diameter ~ Ø430 mm
Machining length ~ 300 mm
Spindle speed ~ 6000 min-1
Turret V12
Saddle 1
Controller OSP-P300LA

Production capacity :

03 machines

⭐⭐⭐⭐⭐

TSUGAMI

M06J

Chuck size 6″
Machining diameter ~ Ø51 mm
Machining length ~ 290 mm
Spindle speed ~ 4500 min-1
Turret V8
Saddle 1
Controller Fanuc 0i

Production capacity :

04 machines

⭐⭐⭐⭐⭐

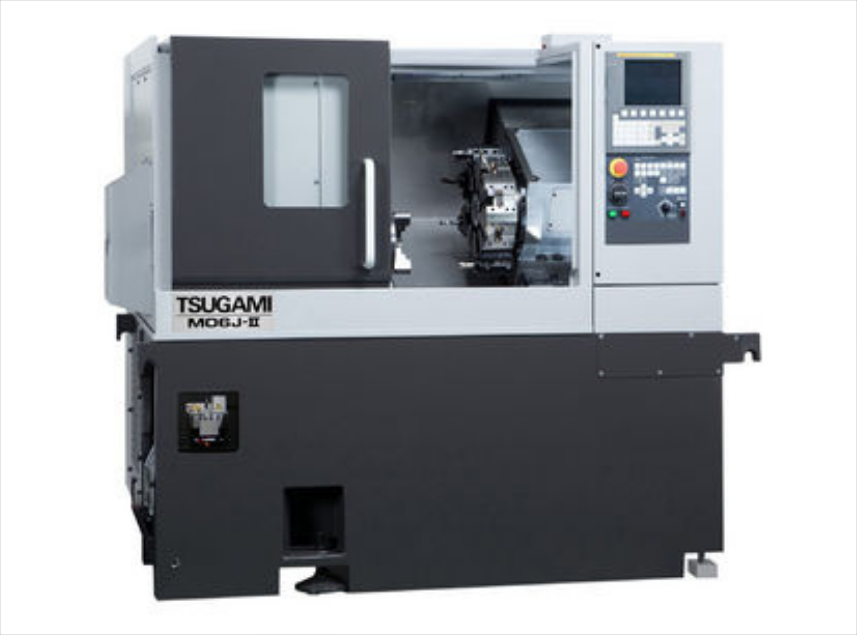

TSUGAMI

M06J-II

Chuck size 6″
Machining diameter ~ Ø51 mm
Machining length ~ 290 mm
Spindle speed ~ 4500 min-1
Turret V8
Saddle 1
Controller Fanuc 0i

Production capacity :

06 machines

⭐⭐⭐⭐⭐

TSUGAMI

M08J-II

Chuck size 8″
Machining diameter ~ Ø65 mm
Machining length ~ 290 mm
Spindle speed ~ 4000 min-1
Turret V8
Saddle 1
Controller Fanuc 0i

Production capacity :

03 machines
NC Lathes

⭐⭐⭐⭐

TAKISAWA

TAC-510

Chuck size 10″
Machining diameter ~ Ø510 mm
Machining length ~ 1010 mm
Spindle speed ~ 1500 min-1
Controller Raku-Raku

Production capacity :

01 machine

⭐⭐⭐⭐

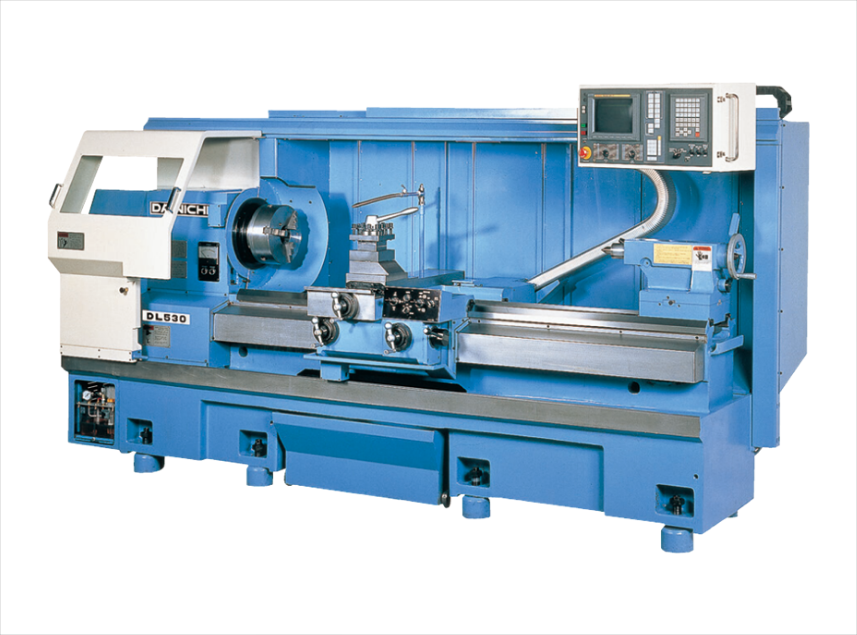

DAINICHI

DL530x100

Chuck size 10″
Machining diameter ~ Ø530 mm
Machining length ~ 1500 mm
Spindle speed ~ 1700 min-1
Controller Fanuc 20i

Production capacity :

02 machines
Conventional Lathes

⭐⭐⭐

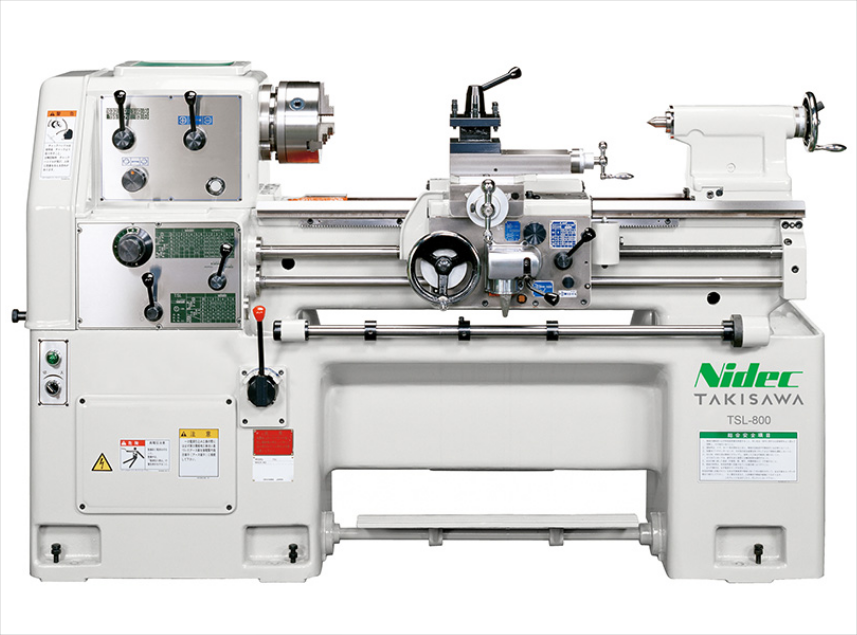

TAKISAWA

TSL-800

Chuck size 7″
Machining diameter ~ Ø210 mm
Machining length ~ 800 mm
Spindle speed ~ 83–1800 min-1

Production capacity :

01 machine

⭐⭐⭐

WASINO

LE-19K

Chuck size 9″
Machining diameter ~ Ø240 mm
Machining length ~ 700 mm
Spindle speed ~ 70–2000 min-1

Production capacity :

05 machines

⭐⭐⭐

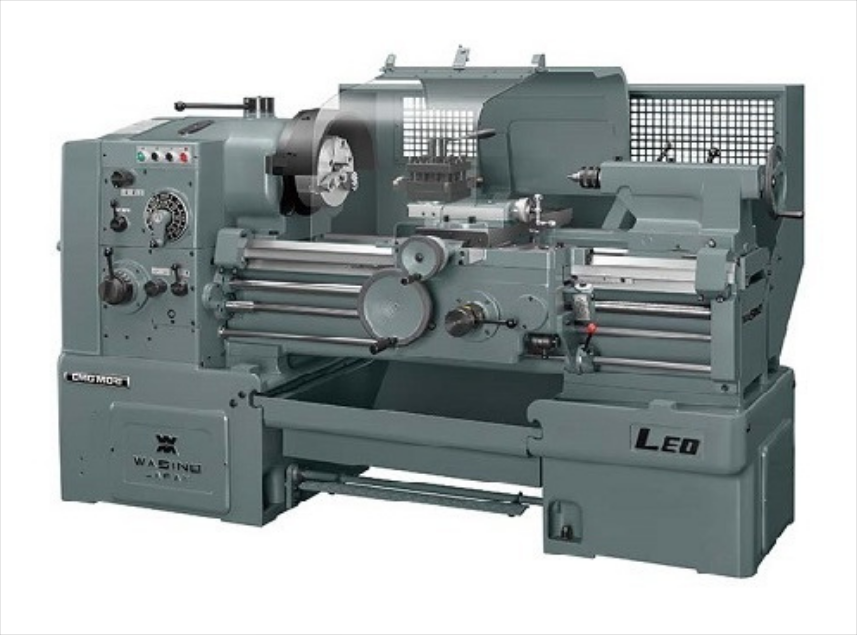

WASINO

LEO-80A

Chuck size 9″
Machining diameter ~ Ø270 mm
Machining length ~ 1250 mm
Spindle speed ~ 23–1800 min-1

Production capacity :

01 machine

⭐⭐⭐

WASINO

LPT-35C

Chuck size 9″
Machining diameter ~ Ø210 mm
Machining length ~ 550 mm
Spindle speed ~ 56-2500 min-1

Production capacity :

05 machines
NC Gun Drill Machine

⭐⭐⭐⭐

MIROKU

MLG-800S

Chuck size –
Machining diameter Ø2 ~ Ø25 mm
X/Y/Z traveling 0/0/800 mm
Spindle speed 800 ~ 7200 min-1
Controller F-Power Mate

Production capacity :

08 machines

⭐⭐⭐⭐

MIROKU

MKG-600 INC

Chuck size –
Machining diameter Ø2 ~ Ø25 mm
X/Y/Z traveling 0/0/600 mm
Spindle speed 800 ~ 7200 min-1
Controller F-Power Mate

Production capacity :

03 machines

⭐⭐⭐⭐

MIROKU

MKG-800S INC

Chuck size –
Machining diameter Ø2 ~ Ø25 mm
X/Y/Z traveling 0/0/800 mm
Spindle speed 800 ~ 7200 min-1
Controller F-Power Mate

Production capacity :

01 machine

⭐⭐⭐

MIROKU

MIG-400 INC

Chuck size –
Machining diameter Ø1.5 ~ Ø20 mm
X/Y/Z traveling 0/0/400 mm
Spindle speed 1500 ~ 4500 min-1
Controller F-Power Mate

Production capacity :

01 machine
CNC 3-Axis Machines

⭐⭐⭐⭐⭐

OKK

VB53

Holder BT40
Table Area 1260 x 600 mm
Spindle speed ~ 20000 RPM
ATC ~ 30
Controller Fanuc 31i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1050 mm

530 mm

510 mm

Production capacity :

12 machines

⭐⭐⭐⭐⭐

OKK

VB53α

Holder BT40
Table Area 1260 x 600 mm
Spindle speed ~ 20000 RPM
ATC ~ 30
Controller Fanuc 31i
Axes travel
›   X

›   Y

›   Z

 =

=

=

 1050 mm

530 mm

510 mm

Production capacity :

08 machines

⭐⭐⭐⭐⭐

OKK

VC51

Holder BT40
Table Area  850 x 510 mm
Spindle speed ~ 12000 RPM
ATC 20~30
Controller Fanuc
Axes travel

›   X

›   Y

›   Z

 =

=

=

 720 mm

510 mm

460 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

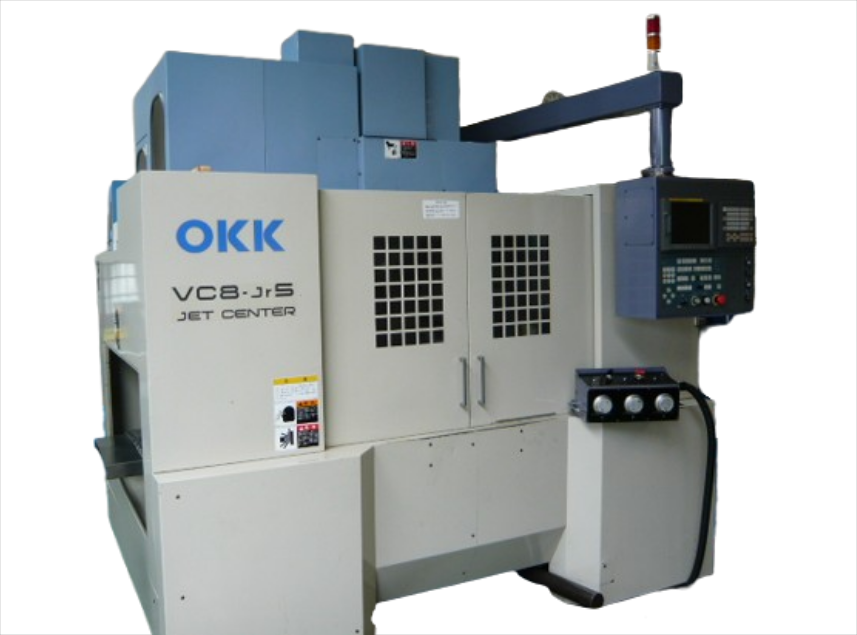

OKK

VC8-JR5

Holder BT40
Table Area 1050 x 560 mm
Spindle speed ~ 8000 RPM
ATC ~ 20
Controller Fanuc 16i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 820 mm

510 mm

510 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

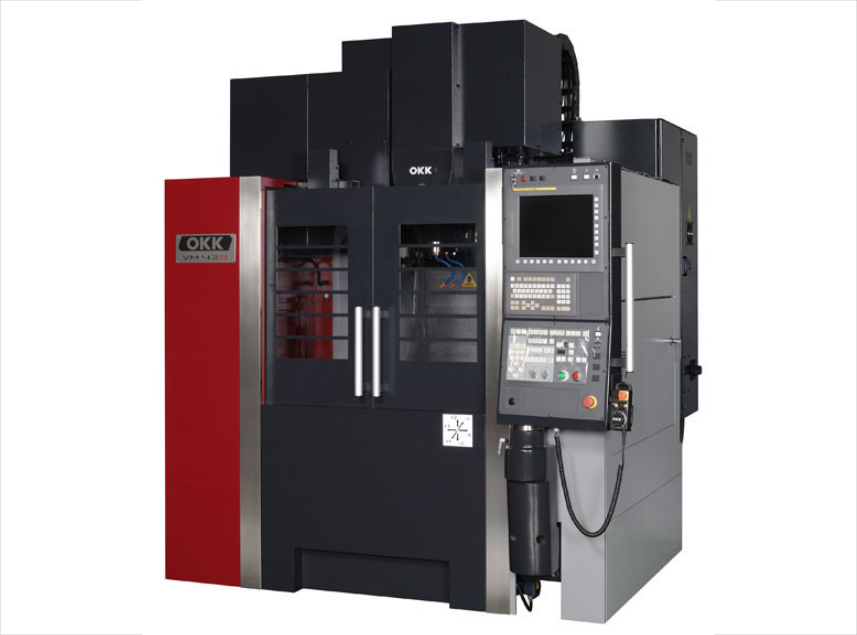

OKK

VM43R

Holder BT40 / BT50
Table Area 800 x 420 mm
Spindle speed ~ 8000 RPM
ATC ~ 30
Controller Fanuc 31i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 630 mm

430 mm

460 mm

Production capacity :

03 machines

⭐⭐⭐⭐⭐

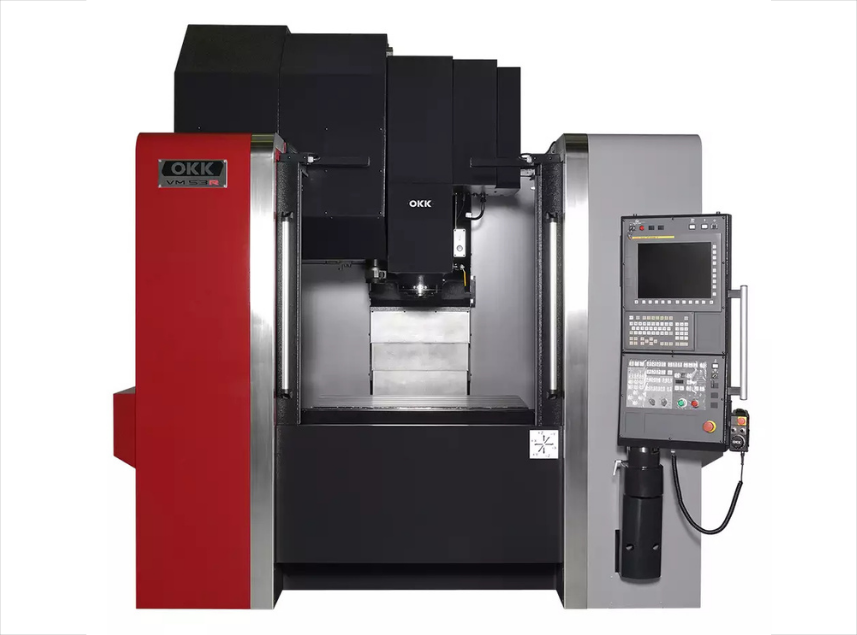

OKK

VM53R

Holder BT40 / BT50
Table Area 1050 x 560 mm
Spindle speed ~ 8000 RPM
ATC ~ 30
Controller Fanuc 31i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1050 mm

530 mm

510 mm

Production capacity :

04 machines

⭐⭐⭐⭐⭐

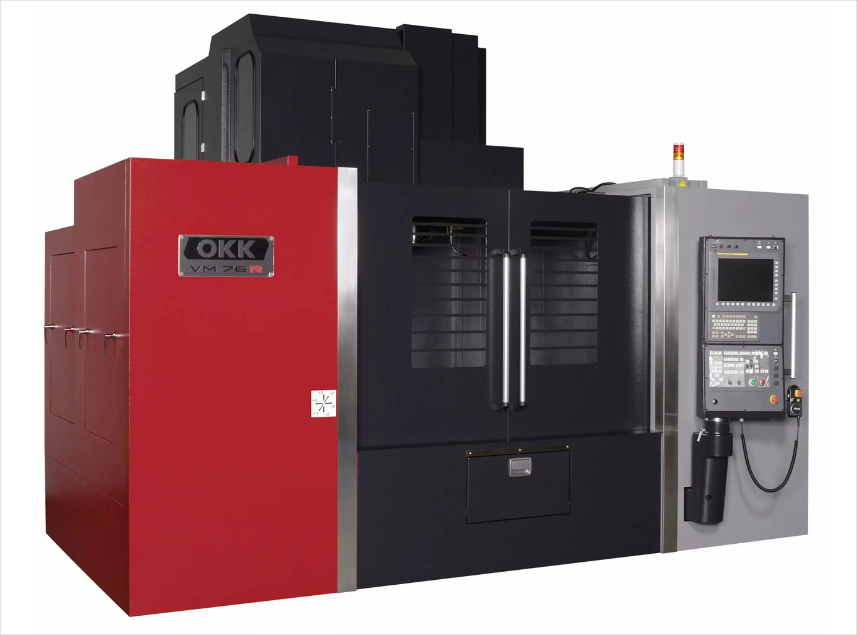

OKK

VM76R

Holder BT50
Table Area 1550 x 760 mm
Spindle speed ~ 8000 RPM
ATC ~ 30
Controller Fanuc 31i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1540 mm

760 mm

660 mm

Production capacity :

04 machines

⭐⭐⭐⭐⭐

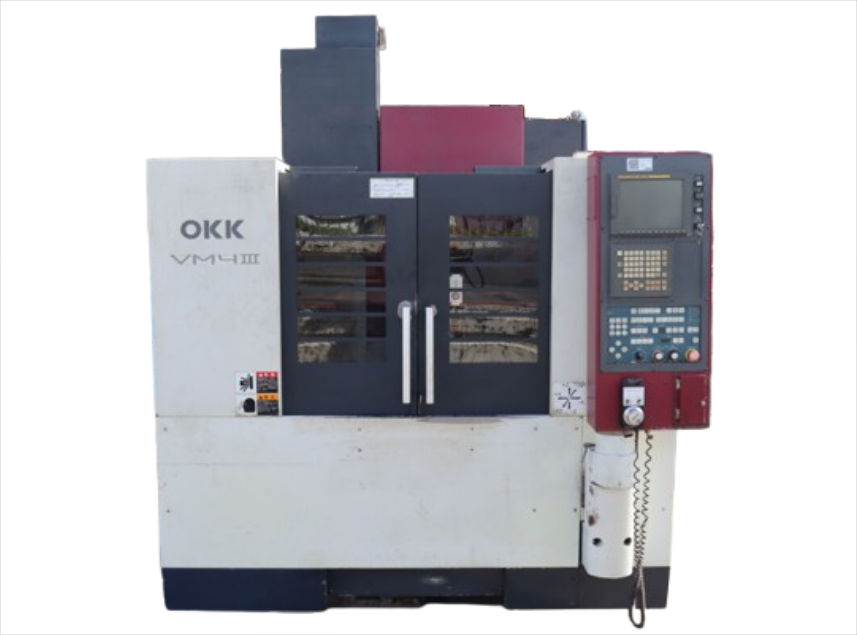

OKK

VM4III

Holder BT40
Table Area 410 x 800 mm
Spindle speed ~ 20000 RPM
ATC ~ 20
Controller Fanuc 180i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 630 mm

410 mm

460 mm

Production capacity :

02 machines

⭐⭐⭐⭐⭐

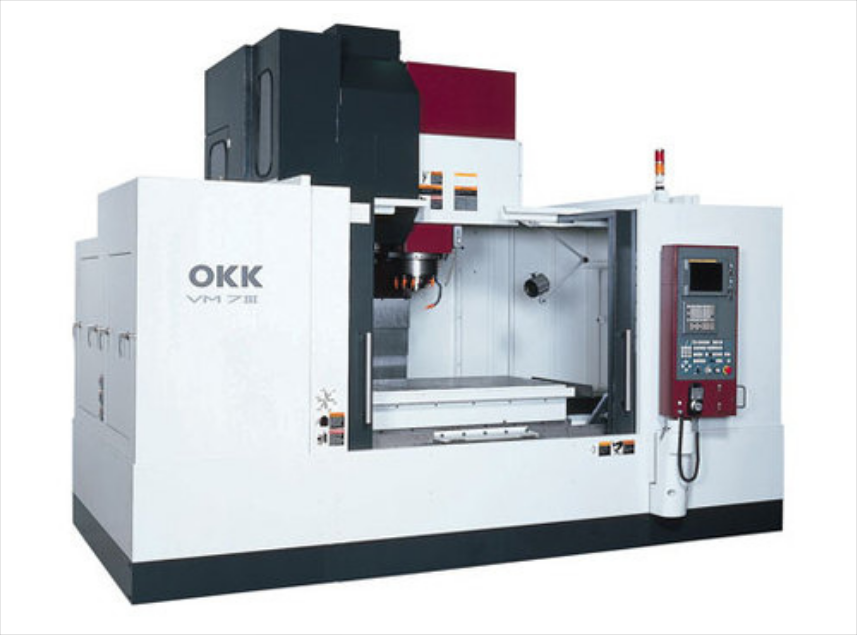

OKK

VM7III

Holder BT50
Table Area 1550 x 740 mm
Spindle speed ~ 6000 RPM
ATC ~ 30
Controller Fanuc 180i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1530 mm

740 mm

660 mm

Production capacity :

02 machines

⭐⭐⭐⭐

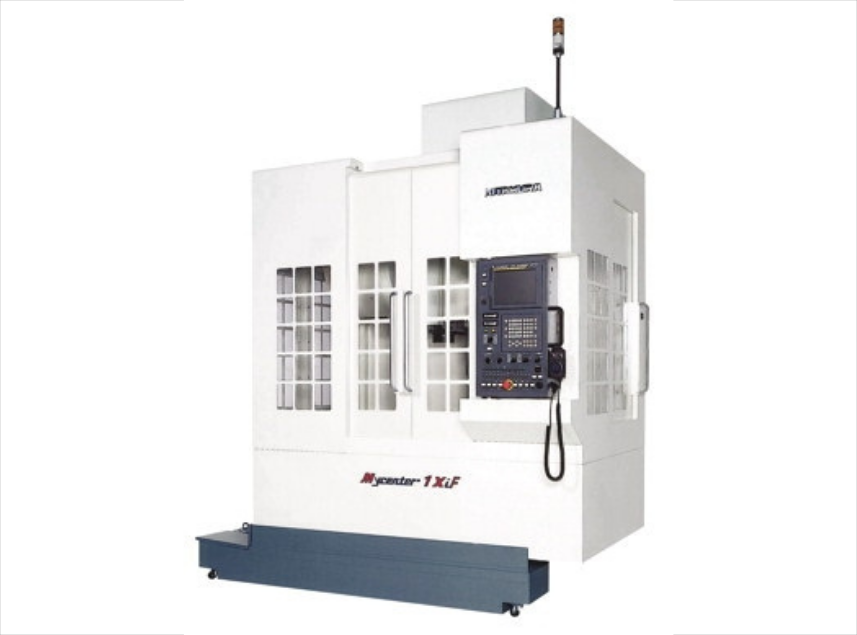

KITAMURA

1XiF

Holder BT30
Table Area 786 x 355 mm
Spindle speed ~ 15000 RPM
ATC ~ 30
Controller Fanuc 16i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 510 mm

355 mm

460 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

DMG MORI

CMX 800V

Holder BT40
Table Area 1100 x 560 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller Fanuc
Axes travel

›   X

›   Y

›   Z

 =

=

=

 800mm

560 mm

510 mm

Production capacity :

05 machines

⭐⭐⭐⭐⭐

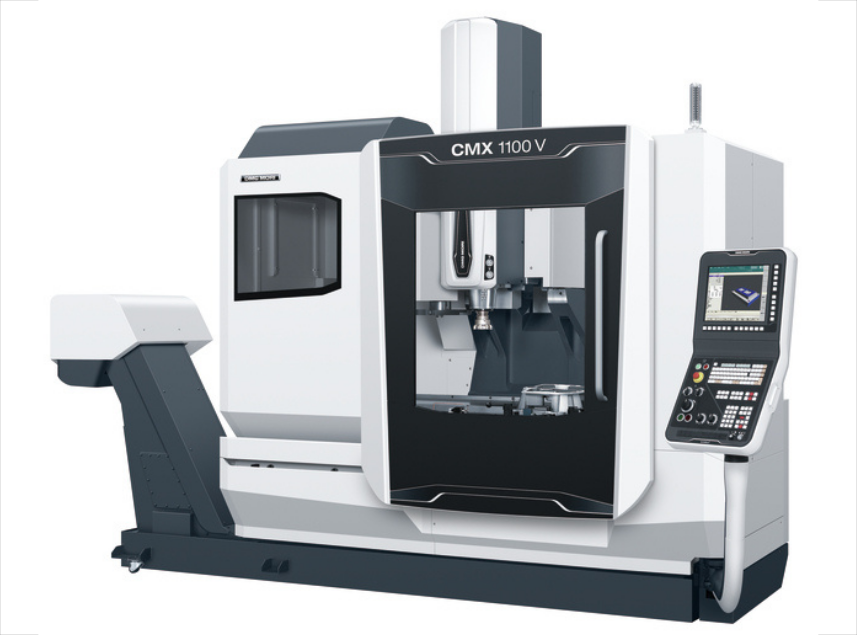

DMG MORI

CMX 1100V

Holder BT40
Table Area 1400 x 560 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller Fanuc
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1100mm

560 mm

510 mm

Production capacity :

04 machines

⭐⭐⭐⭐⭐

MAZAK

VCN-430A

Holder BT40
Table Area 900 x 430 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

 560 mm

430 mm

510 mm

Production capacity :

02 machines

⭐⭐⭐⭐⭐

MAZAK

VCN-430A L

Holder BT40
Table Area 900 x 430 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

560 mm

430 mm

510 mm

Production capacity :

04 machines

⭐⭐⭐⭐⭐

MAZAK

VCN-460

Holder BT40
Table Area 900 x 460 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

 560 mm

460 mm

510 mm

Production capacity :

06 machines

⭐⭐⭐⭐⭐

MORISEIKI

VCN-530C L

Holder BT40
Table Area 1300 x 550 mm
Spindle speed ~ 12000 RPM
ATC ~ 30
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1050 mm

530 mm

510 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

MAZAK

VC-Ez 410 IP

Holder BT40
Table Area 950 x 410 mm
Spindle speed ~ 12000 RPM
ATC ~ 24
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

 762 mm

410 mm

510 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

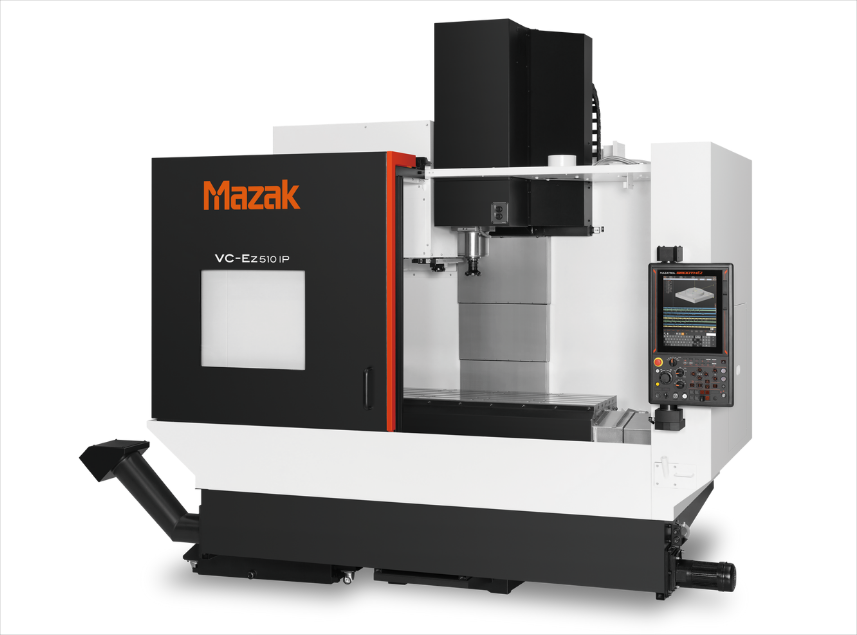

MAZAK

VC-Ez 510 IP

Holder BT40
Table Area 1250 x 492 mm
Spindle speed ~ 12000 RPM
ATC ~ 24
Controller MAZATROL
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1050 mm

510 mm

635 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

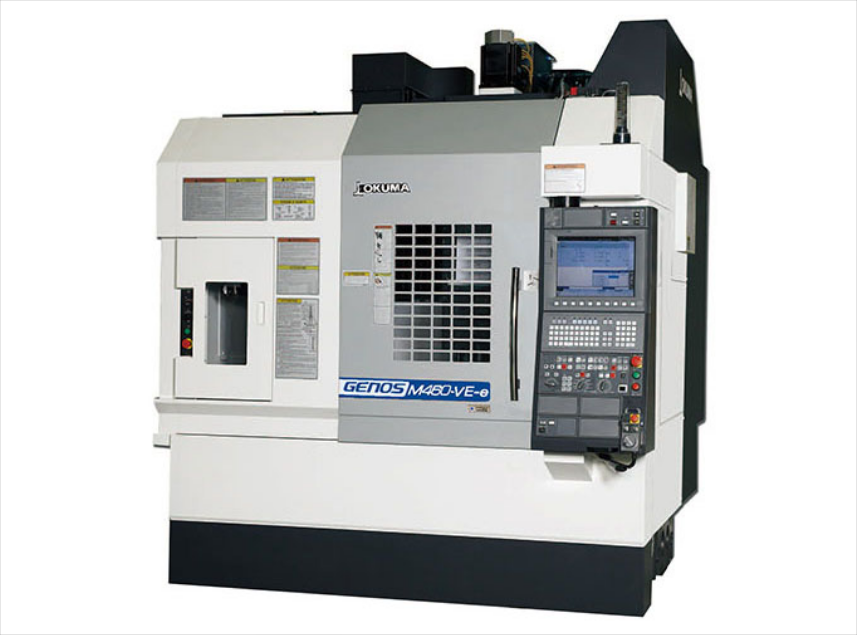

OKUMA

GENOS M460-VE-e

Holder BT40
Table Area 1000 x 460 mm
Spindle speed ~ 15000 RPM
ATC ~ 32
Controller OSP-P300MA-e
Axes travel

›   X

›   Y

›   Z

 =

=

=

 762 mm

460 mm

460 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

OKUMA

GENOS M560-V-e

Holder BT40
Table Area 1300 x 560 mm
Spindle speed ~ 15000 RPM
ATC ~ 32
Controller OSP-P300MA-e
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1050 mm

560 mm

460 mm

Production capacity :

01 machine

⭐⭐⭐⭐

MORISEIKI

SV-503B/50

Holder BT50
Table Area 1320 x 600 mm
Spindle speed ~ 6000 RPM
ATC ~ 30
Controller Fanuc 18i
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1020 mm

510 mm

510 mm

Production capacity :

01 machine
CNC 4-Axis Machines

⭐⭐⭐⭐⭐

OKK

HM500

Holder BT50
Pallet Area 500 x 500 mm
Spindle speed ~ 8000 RPM
ATC ~ 40
Controller Fanuc
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 780 mm

750 mm

800 mm

360° (0.001°)

Production capacity :

01 machine

⭐⭐⭐⭐⭐

OKK

HM600

Holder BT50
Pallet Area 630 x 630 mm
Spindle speed ~ 12000 RPM
ATC ~ 60
Controller Fanuc
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 780 mm

750 mm

800 mm

360° (0.001°)

Production capacity :

01 machine

⭐⭐⭐⭐⭐

OKK

HMC400

Holder BT40
Pallet Area 400 x 400 mm
Spindle speed ~ 15000 RPM
ATC ~ 40
Controller Fanuc
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 560 mm

560 mm

690 mm

360° (0.001°)

Production capacity :

04 machines

⭐⭐⭐⭐⭐

OKK

MH6300S

Holder BT50
Pallet Area 630 x 630 mm
Spindle speed ~ 12000 RPM
ATC ~ 40
Controller Fanuc
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 800 mm

750 mm

880 mm

360° (0.001°)

Production capacity :

01 machine

⭐⭐⭐⭐⭐

OKUMA

MILLAC 44H II

Holder BT40
Pallet Area 320 x 320 mm
Spindle speed ~ 12000 RPM
ATC ~ 10
Controller Fanuc / OSP
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 410 mm

460 mm

470 mm

360° (0.001°)

Production capacity :

07 machines

⭐⭐⭐⭐

YAMASAKI

YZB-85NCR

Holder NT50
Pallet Area 1300 x 600 mm
Spindle speed ~ 1500 RPM
Index Table Yes (CTAP-601)
Controller Fanuc
# Axis 04 (X, Y, Z, B)
Axes travel

›   X

›   Y

›   Z

›   B

 =

=

=

=

 900 mm

740 mm

600 mm

360° (5°)

Production capacity :

01 machine
Conventional Milling Machines

⭐⭐⭐

MAKINO

KSA

Type Milling
Holder NT40
Pallet Area 1100 x 250 mm
Spindle speed ~ 4000 RPM
Axes travel

›   X

›   Y

›   Z

 =

=

=

 550 mm

250 mm

300 mm

Production capacity :

01 machine

⭐⭐⭐

MAKINO

KSJP-55

Type Milling
Holder NT40
Pallet Area 1100 x 250 mm
Spindle speed ~ 1500 RPM
Axes travel

›   X

›   Y

›   Z

 =

=

=

 550 mm

250 mm

350 mm

Production capacity :

01 machine

⭐⭐⭐

SEIWA

MG-1100

Type Radial Drilling
Holder MT#4
Base Area 1795 x 940 mm
Spindle speed ~ 1500 RPM
Working dimensions

›   X

›   Y

›   Z

 =

=

=

 1140 mm

615 mm

1305 mm

Production capacity :

01 machine
Sinker / Wire EDM Machines

Sinker EDM

⭐⭐⭐⭐⭐

MITSUBISHI

EA28V ADVANCE

Fluid Level 150~500 mm
Table Area 1100 x 750 mm
Workpiece Weight ~ 2000 kg
Electrode Weight ~ 200 kg
Controller Mitsubishi M700
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1000 mm

470 mm

450 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

MITSUBISHI

SG12M

Fluid Level 65~400 mm
Table Area 700 x 500 mm
Workpiece Weight ~ 1000 kg
Electrode Weight ~ 50 kg
Controller D-CUBES
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 400 mm

300 mm

300 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

MITSUBISHI

SG28M

Fluid Level 75~400 mm
Table Area 850 x 600 mm
Workpiece Weight ~ 2000 kg
Electrode Weight ~ 200 kg
Controller D-CUBES
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 650 mm

450 mm

400 mm

Production capacity :

01 machine

Wire EDM

⭐⭐⭐⭐⭐

MITSUBISHI

MV1200S

Taper Angle ~ 15°
Table Area 640 x 450 mm
Workpiece Weight ~ 500 kg
Wire Diameter 0.1 ~ 0.3 mm
Controller D-CUBES
# Axis 04 (X, Y, U, V)
Axes travel

›   X

›   Y

›   U

›   V

 =

=

=

=

 400 mm

300 mm

±60 mm

±60 mm

Production capacity :

03 machines

⭐⭐⭐⭐⭐

MITSUBISHI

MV2400S

Taper Angle ~ 15°
Table Area 840 x 560 mm
Workpiece Weight ~ 1500 kg
Wire Diameter 0.1 ~ 0.3 mm
Controller D-CUBES
# Axis 04 (X, Y, U, V)
Axes travel

›   X

›   Y

›   U

›   V

 =

=

=

=

 400 mm

300 mm

±60 mm

±60 mm

Production capacity :

03 machines

⭐⭐⭐⭐

RUIJUN

FR-400X

Taper Angle ~ 12°
Table Area 550 x 690 mm
Workpiece Weight ~ 350 kg
Wire Diameter 0.16 ~ 0.2 mm
Controller RUJUN3.0
# Axis 04 (X, Y, U, V)
Axes travel

›   X

›   Y

›   U

›   V

 =

=

=

=

 400 mm

300 mm

±80 mm

±80 mm

Production capacity :

01 machine
Grinding Machines

⭐⭐⭐⭐

NICCO

F-64H

Magnet Size 600 x 400mm
Rotation speed 1700 RPM
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 600 mm

400 mm

550 mm

Production capacity :

01 machine

⭐⭐⭐⭐

OKAMOTO

PSG-157

Magnet Size 1500 x 700mm
Rotation speed 1100 RPM
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1500 mm

700 mm

695 mm

Production capacity :

01 machine

⭐⭐⭐⭐

WASINO

SG-105A

Magnet Size 1000 x 500mm
Rotation speed 1620 RPM
# Axis 03 (X, Y, Z)
Axes travel

›   X

›   Y

›   Z

 =

=

=

 1500 mm

750 mm

475 mm

Production capacity :

01 machine
Spotting Machines

⭐⭐⭐⭐⭐

SANKI SEIKO

SDP-1612-100T

Pressing Capacity 20~100 ton
Table Area 1600 x 1200mm
Daylight 1500 mm
Table Capacity 1300 mm / 8 ton
Flipping Capacity 110° / 3 ton

Production capacity :

01 machine
OPTICAL 2D/3D SCANNING

2D Scanner

⭐⭐⭐⭐⭐

KEYENCE

IM-6120

Min. Display Unit 0.1 μm
Sensor Display 1″ 6.6 MP / 10.4″ LCD
View in High-precision 25 x 125 mm
Repetition Acc. ±0.5 μm ~ 1.5 μm
Measurement Acc. ±2 μm ~ ±(4 + 0.02 L) μm
X/Z Stage X 30 mm / Z 100 mm

Production capacity :

01 machine

3D Scanner

3D Scanner

⭐⭐⭐⭐⭐

GOM

ATOS Q

PSA 400
Certification DAkkS
Light Source LED
Points per scan ~ 12 million
Measuring area 100 x 70 – 500 x 370 mm²
Point distance 0.03 ~ 0.12 mm
Working distance ~ 490 mm
Weight ~ 4 kg
Dimensions 40 x 240 x 83 mm
Cable length 10 m fiber optic cable
No. P0264-L8R8

Production capacity :

01 machine
3D Coordinate Measuring Machines

⭐⭐⭐⭐⭐

TOKYO SEIMITSU

XYZAX SVA800A

Measuring Program ZEISS CALYPSO
Electric Probe PH10T-TP200
Min. Display Unit 0.01 μm
Measuring Accuracy
(in 18 ~ 22°C)		 1.9+4L/1000μm
Measuring length
Linear scale
Max. Workpiece
(H x W)		 ~
~		 770 mm
800 kg
Measuring range

›   X

›   Y

›   Z

 =

=

=

 850 mm

600 mm

600 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

TOKYO SEIMITSU

XYZAX AXCEL PH 9/10/6

Measuring Program ZEISS CALYPSO
Electric Probe PH10T-TP200
Min. Display Unit 0.01 μm
Measuring Accuracy
(in 18 ~ 22°C)
2.3+3L/1000 μm
Measuring length
Linear scale
Max. Workpiece
(H x W)		 ~
~		 790 mm
1000 kg
Measuring range

›   X

›   Y

›   Z

 =

=

=

 850 mm

1000 mm

600 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

TOKYO SEIMITSU

XYZAX AXCEL PH 9/6/6

Measuring Program ZEISS CALYPSO
Electric Probe PH10T-TP200
Min. Display Unit 0.01 μm
Measuring Accuracy
(in 18 ~ 22°C)
2.3 + 3L/1000 μm
Measuring length
Linear scale
Max. Workpiece
(H x W)		 ~ 790 mm
~ 800 kg
Measuring range
›   X

›   Y

›   Z

 =

=

=

 850 mm

600 mm

600 mm

Production capacity :

03 machines

⭐⭐⭐⭐⭐

TOKYO SEIMITSU

XYZAX SVA NEX 9/15/6

Measuring Program ZEISS CALYPSO
Electric Probe PH10T-TP200
Min. Display Unit 0.01 μm
Measuring Accuracy
(in 18 ~ 22°C)
2.8+4L/1000 μm
Measuring length
Linear scale
Max. Workpiece
(H x W)		 ~
~		 770 mm
1500 kg
Measuring range

›   X

›   Y

›   Z

 =

=

=

 1000 mm

1500 mm

600 mm

Production capacity :

01 machine
High-Precision Digital Height Gauge

⭐⭐⭐⭐⭐

MITUTOYO

QMH-24″BX

Measuring Unit Metric / Inch
Measure range 0 ~ 715 mm
Measuring Acc.
(at 20°C)		 ±(2.4+2.1L/600) μm
Repeatability 2σ ≤ 1.8 µm
Resolution ~ 0.001 / 0.005 mm
~ 0.00005″ / 0.0001″ / 0.0002″
Perpendicularity 12 µm
Measuring force 1.5 ± 0.5 N
Data Output Digimatic 1+2 / USB / Wireless
Air Floating Yes
Driving Method Manual (wheel)

Production capacity :

01 machine

⭐⭐⭐⭐⭐

MITUTOYO

QMH-24″B

Measuring Unit Metric / Inch
Measure range ~ 715 mm
Measuring Acc.
(at 20°C)		 ±(2.4+2.1L/600) μm
Repeatability 2σ ≤ 1.8 µm
Resolution 0.001 / 0.005 mm
0.00005″ / 0.0001″ / 0.0002″
Perpendicularity 12 µm
Measuring force 1.5 ± 0.5 N
Data Output Digimatic / USB
Air Floating Yes
Driving Method Manual (wheel)

Production capacity :

01 machine

⭐⭐⭐⭐⭐

SYLVAC

Z5 700mm

Measuring Unit Metric / Inch
Measure Range
(with extension)		 ~ 711 mm
(~ 1023 mm)
Measuring Acc.
(in 10 ~ 40°C)		 2.5+L(mm)/300 µm
Repeatability 2 µm
Resolution ~ 0.001 mm
Perpendicularity 8 µm
Measuring force 0.75 ~ 1.5 N
Data Output USB / RS232
Air Floating Yes
Driving Method Manual & Motorized

Production capacity :

01 machine

⭐⭐⭐⭐⭐

MITUTOYO

QMH-600B

Measuring Unit Metric
Measure range ~ 715 mm
Measuring Acc.
(at 20°C)		 ±(2.4+2.1L/600) μm
Repeatability 2σ ≤ 1.8 µm
Resolution 0.001 / 0.005 mm
Perpendicularity 12 µm
Measuring force 1.5 ± 0.5 N
Data Output Digimatic / USB
Air Floating Yes
Driving Method Manual (wheel)

Production capacity :

01 machine
Tool Presetting and Measuring Machine

⭐⭐⭐⭐⭐

ZOLLER

VENTURION 450X

Display 24″ »pilot« 4.0
Camera ~ 5MP
# Axis 03 (Z, X, C)
›   Tool length

›   Tool Diameter

›   Spindle

 ~

~

 450 mm

210 mm

autofocus
Taper BT / HSK shank
Adapter »ace« system
Handling Manual
Installation Dimensions

›   X

›   Y

›   Z

 =

=

=

 2354 mm

835 mm

1750 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

KYORITSU

ISIII-6040

Display 12″ Touch Panel
Camera ~ 2MP
# Axis 03 (Z, X, C)
›   Tool length

›   Tool Diameter

›   Spindle

 ~

~

 600 mm

200 mm

manual
Taper BT / HSK shank
Adapter Sleeves
Handling Electric Joystick
Installation Dimensions

›   X

›   Y

›   Z

 =

=

=

 870 mm

550 mm

1800 mm

Production capacity :

01 machine
Contour Measurement - Hardness & Roughness Tester

Hardness Tester

⭐⭐⭐⭐⭐

MITUTOYO

HR-430MS

Test Scales Rockwell & Superficial
Standard JIS / ISO / ASTM
Duration 1~90s or Manual
Display Matrix Backlight LCD
Test Force
  ›   Preliminary

›   Rockwell

›   Superficial

 ~

~

~

 10 / 3 kgf

60 / 100 / 150 kgf

15/ 30 / 45 kgf
Automatic Load, duration, unload

Production capacity :

01 machine

Contour Measurement

⭐⭐⭐⭐⭐

MITUTOYO

CONTOURECORD 1600G

Straightness Acc. 1 µm/100mm
Measuring range
 ›  X = 100 mm Tracing Driver
Sensing

Resolution

Accuracy

Speed

 Moiré Striped Scale

0.1 µm

±1.0 + (2L /100) µm

0.03 ~ 6 mm/s
 ›  Z = 50 mm Stylus
Sensing

Resolution

Accuracy

Speed

 Trans

1 µm / 50 mm

±4.5 µm / 50 mm

3 ~ 10mm/s

Production capacity :

01 machine

SURFACE ROUGHNESS TESTER

⭐⭐⭐⭐⭐

MITUTOYO

SJ-310 series 178

Measuring Unit Metric / Inch
Measuring range
 ›  X = 17.5 mm Drive Unit
Speed 0.25 & 0.5 & 0.75 mm/s
 ›  Z = 360 µm
   (-200 ~ +160 μm)		 Stylus & Detector
Sensing

Directions

Resolution

 Skidded

Up/Down

0.02 µm
Evaluation JIS, VDA, ISO, ANSI
Data Output USB, Digimatic, RS-232C

Production capacity :

01 machine
Air Compressor

⭐⭐⭐⭐⭐

KOBELCO

AG15A

Max. pressure ~ 0.75 MPa
Flow capacity ~ 2.75 m³/min
Motor Power ~ 15 kW
Noise ~ 57 dB
Measuring range

›   W

›   D

›   H

 =

=

=

 1500 mm

880 mm

1350 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

KOBELCO

AG37A

Max. pressure ~ 0.75 MPa
Flow capacity ~ 7.2 m³/min
Motor Power ~ 37 kW
Noise ~ 61 dB
Measuring range

›   W

›   D

›   H

 =

=

=

 1740 mm

970 mm

1550 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

REINER

RVK-22A

Max. pressure 0.75 ~ 1.25 MPa
Flow capacity 0.61 ~ 3.80 m³/min
Motor Power ~ 22 kW
Noise ~ 68 dB
Measuring range

›   W

›   D

›   H

 =

=

=

 800 mm

900 mm

1350 mm

Production capacity :

01 machine

⭐⭐⭐⭐⭐

REINER

RVH-37A

Max. pressure 0.75 ~ 1.25 MPa
Flow capacity 1.34 ~ 6.81 m³/min
Motor Power ~ 37 kW
Noise ~ 72 dB
Measuring range

›   W

›   D

›   H

 =

=

=

 900 mm

1000 mm

1500 mm

Production capacity :

01 machine

Back to Top List

Benefits of Surface Treatment and Coating

  • Increases component lifespan.
  • Provides high lubricity, wear resistance, and corrosion resistance.
  • High hardness, low friction coefficient.
  • Excellent adhesion and flexibility.

🤝 Our company undertakes the treatment and coating of all types, including Nitriding, PVD coating, CVD coating, PCVD coating, and other combined treatment methods.

Group Model Coating Name Color Features
Nitriding Tufftride Black The surface Nitride layer helps prevent wear, corrosion, and fatigue cracking.
Ion nitride Gray The surface Nitride layer helps prevent wear, corrosion, and fatigue cracking.
KOSUMO V1 Light Gray The Nitride layer is specifically adjusted for mold molding.
KOSUMO V2 Light Gray Controls the compound layer depth, diffusion zone depth, and nitrogen hardness.
Sursulf Gray The surface Nitride layer helps prevent wear, oxidation, and heat resistance.
Kanuc Brown～Black Increases resistance to fatigue cracking and wear.
Kanuc OX Black Used for anti-fatigue cracking, impact resistance, and anti-adhesion (for powder).
Taima Black Improves hot water flow through special surface treatment, Heat testing, anti-adhesion, and erosion resistance.
Nitride PVD Coating Dynamo S coat Purple PVD coating on a Nitrided surface.
Dynamo C Coat Silver PVD coating on a Nitrided surface.
Dynamo X Coat Reddish Purple 3-layer coating with high adhesion on a Nitrided surface.
CMTi Gold A combination of nitriding and PVD.
PVD
Coating		 Dynamo coat Gray-Purple Coating thickness (7-10µm). Wear and heat resistant.
CrN Transparent Used for parts with good sliding properties, heat resistance, and corrosion resistance.
TiN Gold Wear and sliding resistance.
TiALN Purple Has wear and heat resistance.
ALCRONA Gray-Green Prevents heat-induced flow (or creep), heat resistant.
FUTURA NANO Gray-Purple Multi-layered nano coating. Prevents burning on components.
LUMENA Gray-Purple Thick film layer, multi-layered nano coating. Prevents burning on low-release powder parts. Anti-erosion, anti-cracking.
LELLYON CL Transparent Multi-layered Chromium-plated coating. This helps products improve erosion resistance.
CVD
Coating		 TD Metallic Gray Adhesion, anti-adhesion with thermal CVD.
TD-NbC Metallic Gold Adhesion, corrosion resistance, and thermal CVD maintenance capability.
Ti3 Gold Bonding with thermal CVD and 3 special film layers.
PCVD
Coating		 P‐CVD (TiN） Gold Prevents scratches, burning, wear, and thermal cracking/fracture.
P‐CVD (TiALN） Purple Prevents scratches, burning, wear, and thermal cracking/fracture.iệt.
P‐CVD (TiALSiCNO） Purple Excellent for corrosion and burning resistance.

1. What is Polishing? Purpose of Polishing Molds and Mold Components:

👉 1.1. Polishing: is the process of smoothing the surface of molds and mold components to reduce roughness and increase glossiness. Through the use of specialized tools and advanced techniques, polishing technicians remove scratches, burrs, or unwanted particles from the mold surface. The ultimate goal is to create a smooth surface, ensuring that the final molded product has a high-quality finish and is free of defects.

👉 1.2. Benefits of Mold Polishing:
✔️ Improves Product Quality: One of the most significant factors influencing product quality is the mold surface. If the molding tool is not thoroughly polished, the final product is prone to defects such as scratches, surface pitting, or failing to achieve the desired gloss. The polishing process helps eliminate these imperfections, ensuring the finished product has a smooth, shiny surface that meets technical requirements.

✔️ Minimizes Aluminum Sticking to the Mold: By polishing the mold before mass production, the risk of issues such as aluminum sticking to the mold, inconsistent products, or non-uniform surfaces can be significantly reduced. This helps lower the defect rate, saves raw materials, and reduces repair costs.

✔️ Increases Production Efficiency: A well-polished mold ensures a smoother production process. The mold’s smooth surface allows material to flow evenly and quickly, thereby shortening cooling times and accelerating production speed. Polishing molds not only saves time but also reduces energy consumption, increasing overall production efficiency.

✔️ Reduces Frictional Impact and Extends Mold Lifespan: Molds that are not properly maintained and polished will wear out quickly, leading to production issues and reducing their lifespan. Polishing molds helps protect the mold surface, minimizes the impact of frictional forces and high temperatures, thereby extending the mold’s lifespan and saving costs associated with replacing new molds.

2. Dynamo is a comprehensive manufacturer of aluminum die-casting molds, and we offer three types of surface finishes to meet customer needs: mirror polishing, vertical polishing, and EDM (Electrical Discharge Machining) texturing.

2. Dynamo is a comprehensive manufacturer of aluminum die-casting molds, and we offer three types of surface finishes to meet customer needs:

👉 2.1. Fine Polish/鏡面: This ensures a surface roughness of Ra ≤ 0.05µm, Rz ≤ 0.4µm, creating a mirror-like shiny surface that helps molds operate smoothly and eliminates issues related to frictional wear.

👉 2.2. Draw Polish/磨き立て日: This polishing process is performed along the Pin (or parallel to the drawing direction), ensuring a surface roughness of Ra ≤ 0.1µm, Rz ≤ 0.5µm. This helps create an evenly polished surface without defects, making it easy to release the product from the mold.

👉 2.3. EDM (Electrical Discharge Machining) Texturing: We are currently using a SparkOepo surface texturing machine based on the principle of spark discharge. This method can meet requirements for wear resistance, heat resistance, corrosion resistance, and oxidation resistance.

All products undergo visual surface quality inspection and precise, fast measurement using the high-accuracy Mitutoyo SJ-310 surface roughness tester before reaching the customer.

ISO 9001:2015

Quality Standard

Continuously maintaining always be a reliable partner for our valued customers

✨ Dynamo Vietnam Co., Ltd. has successfully obtained the ISO 9001:2015 Quality Management System Certificate, awarded by the Japan Quality Assurance Organization (JQA).

✨ The ISO 9001:2015 certification is a widely recognized international standard. It affirms our strong commitment to implementing an effective quality management system, continuously improving processes and products to bring the highest level of customer satisfaction.

✨ This serves as a testament to the continuous efforts of the entire Dynamo Vietnam team in ensuring superior quality across all production activities and services.

Binh Duong Green Book 2018

Environment Protection

Compliance with regulations and standards in environmental and industrial hygiene

✨ Dynamo Vietnam Co., Ltd. has been recognized in the prestigious publication “Binh Duong Green Book 2018” issued by the Department of Natural Resources and Environment of Binh Duong Province.

✨ This is clear evidence of Dynamo Vietnam’s vision and actions in building a greener, cleaner future. We will continue our relentless efforts to provide environmentally friendly solutions and products, contributing to the overall development of the community.

✔️ You can find more information and refer to it at:
🔗 Trang thông tin UBND tỉnh Bình Dương
🔗 Sách xanh 6.9.2018
